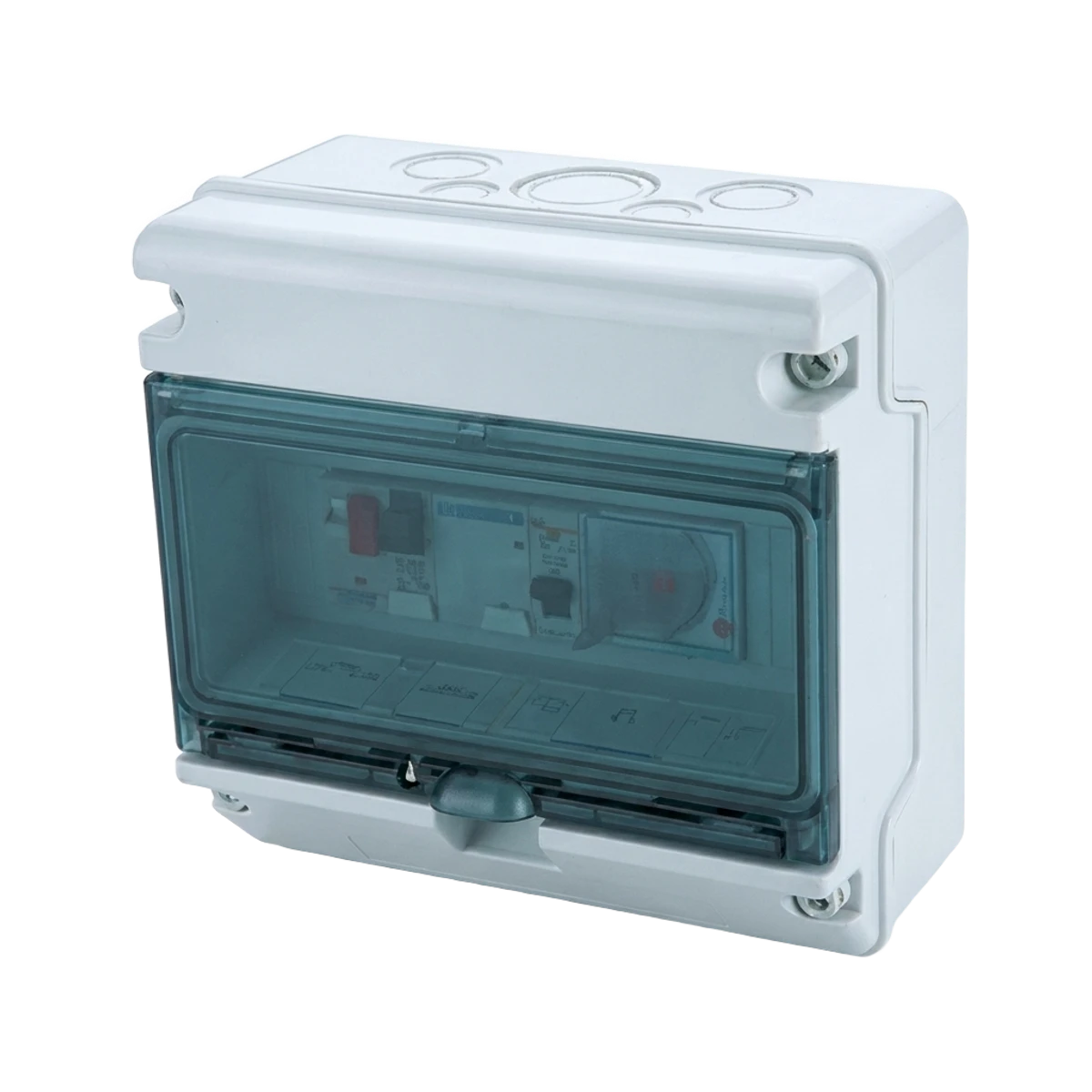

Electrical Control Panel

Pool Mechanical Equipment·CH-POM-0016-01

The AstralPool Electrical Control Panel is an IP-65 rated control box with a lockable, keyed transparent panel that provides thermal overload protection (1.6–10A) for your pool pump. A 24-hour timer, contactor and 3-position modular switch (Auto/0/Manual) come as standard. One of 4 Amperage Types (A: 1.6–2.5A, B: 2.5–4A, C: 4–6.3A, D: 6–10A) is selected according to your pump's rated voltage. It is available as a basic pump-only protection unit, a pump + lighting control unit, or a pump + single-phase or pump + three-phase underwater light control unit with differential (RCD) protection. It comes complete with a wiring diagram, connection diagram, installation instructions, CE conformity certificate and a wall-fixing screw/plug set (4 pieces).
