Technical Datasheet
Pool Disinfection Systems
Doc. No
FOY-CH-DEZ-0049-09
Heliox UV LP UV-C Disinfection Unit · Technical Datasheet
Pool Disinfection SystemsCH-DEZ-0049-09

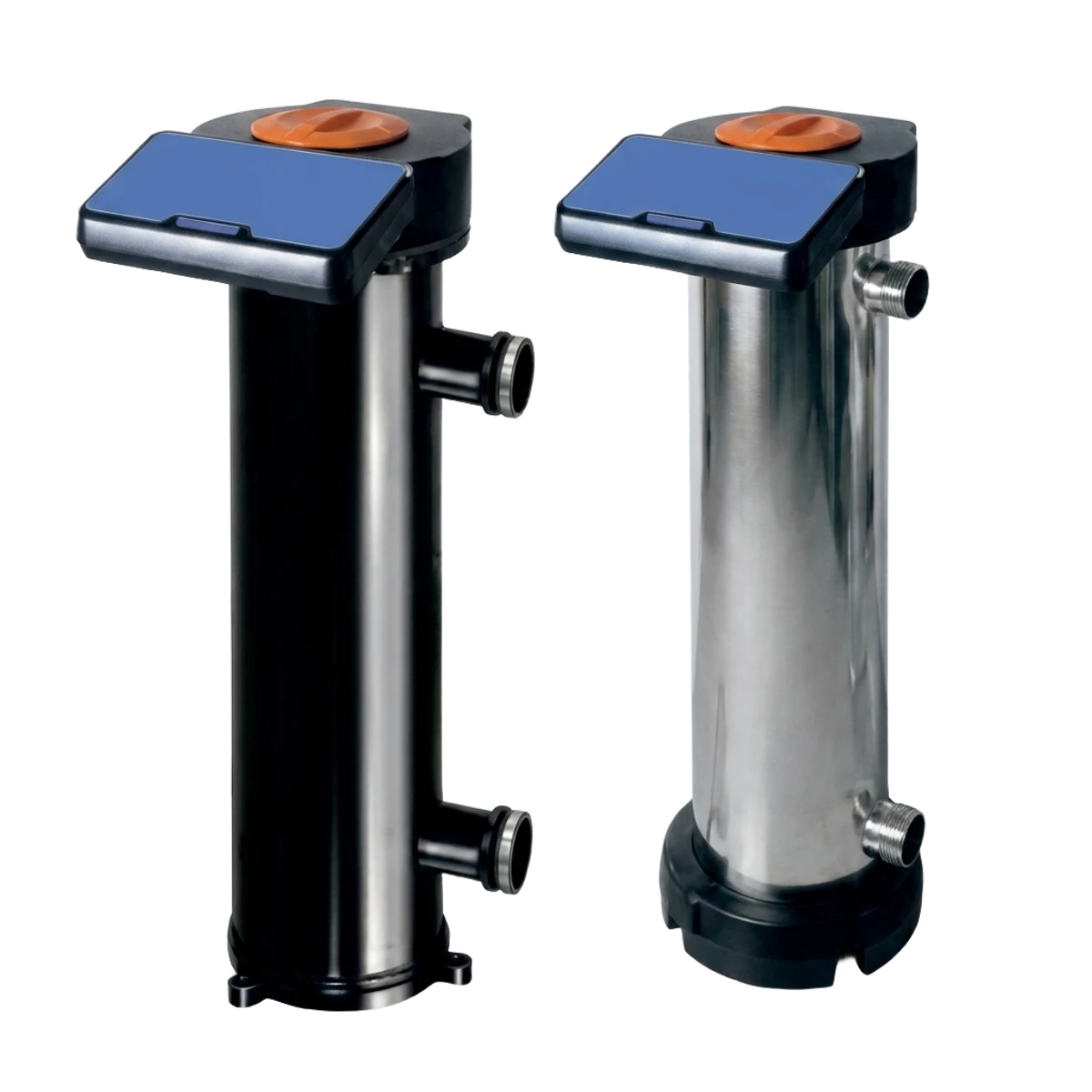

Heliox UV LP is a low pressure UV-C disinfection unit fitted on the line of residential pools, working at a wavelength of 254 nm. There are two series with stainless steel and polyethylene bodies, as well as LP+ versions with pH/ORP control; in total, 16 models handle flow rates from 10 to 30 m³/h. The UV dose is 30 mJ/cm² and lamp life is 13,000 hours.
Technical Specifications
- Flow Rate
- 10 m³/h / 14 m³/h / 25 m³/h / 30 m³/h / 20 m³/h
- UV dose
- 30 mJ/cm²
- Power
- 48 W / 56 W / 90 W / 150 W / 75 W
- UV-C power
- 13 W / 18 W / 30 W / 2x25 W / 25 W
- Number of lamps
- 1 / 2
- Wavelength
- 254 nm
- Body Material
- Stainless steel / Polyethylene
- Cell dimensions
- 27 x 27 x 79 cm / 27 x 27 x 103 cm / 27 x 27 x 70 cm / 27 x 27 x 95 cm
- Cell efficiency class
- B
- Measuring range
- 0.0 - 9.9 pH / 0 - 999 mV
- Measurement accuracy
- 0.1 pH / 1 mV
- Voltage
- 220 - 240 V
- Frequency
- 50 - 60 Hz
- UV lamp life
- 13000 h
- Cell position
- Vertical
- Water temperature range
- 2 - 40 °C
- Weight
- 11.8 kg / 12 kg / 15 kg / 15.6 kg / 12.1 kg / 12.4 kg / 16 kg / 16.5 kg / 7.9 kg / 8.1 kg / 9.2 kg / 9.6 kg / 8.3 kg / 10.8 kg / 11.15 kg
- Manufacturer warranty
- 2 years
All figures are manufacturer data; they vary by model.
Compatibility and connections
- Flow rate
- 10-30 m³/h, at 30 mJ/cm²
- Wavelength
- 254 nm, low pressure UV-C
- Body
- Stainless steel or polyethylene
- Power supply
- 220-240 V, 50-60 Hz
- Water temperature
- 2-40 °C
