PAR56 Pool Lights
PAR56 2.0, LED Lamp.

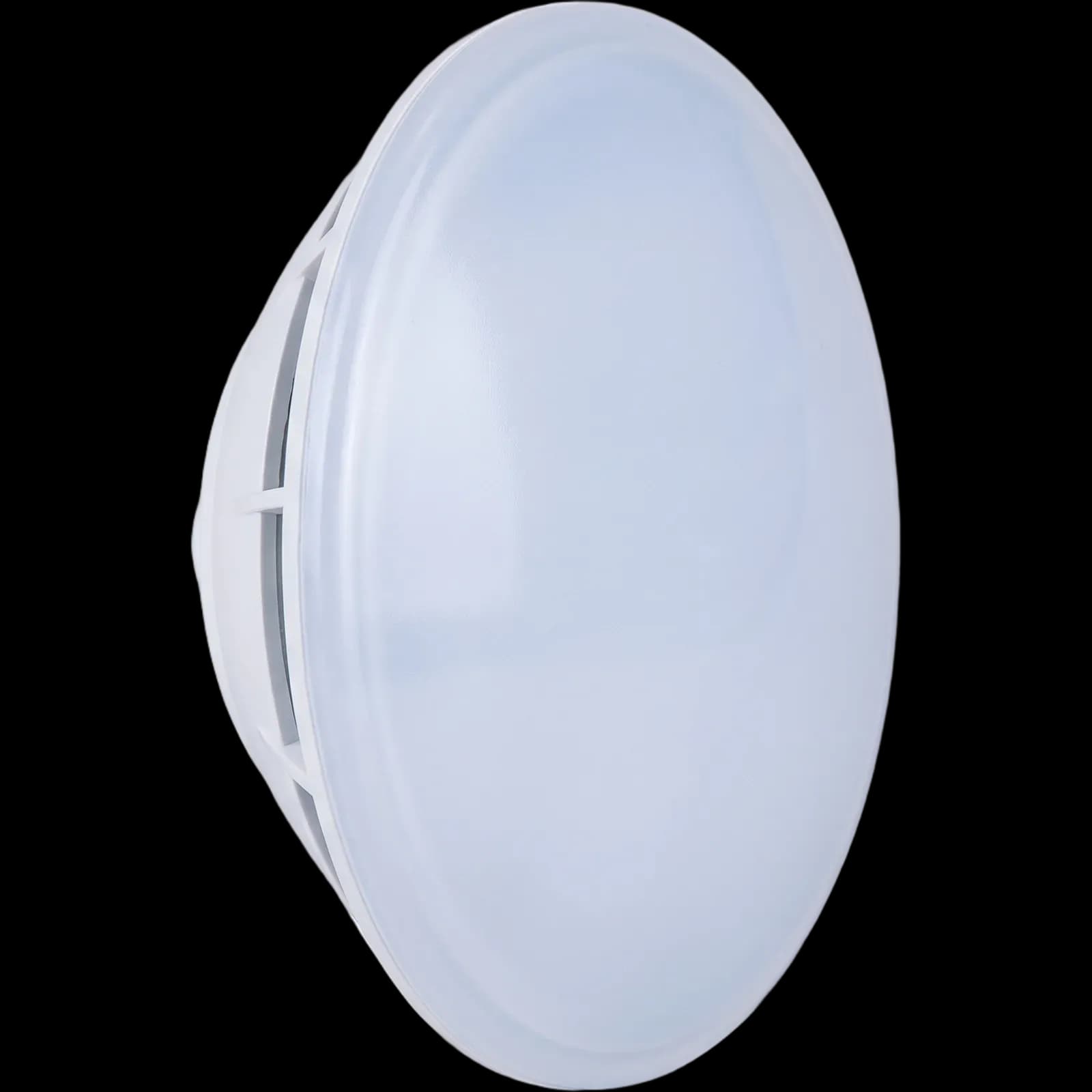

The LumiPlus PAR56 2.0 Pool LED Lamp is a 12 V AC LED pool lamp fitted inside an existing PAR56 floodlight. Çilek Havuz supplies PAR56 2.0 through quotes and as part of its projects. The white and warm white models deliver 1485 lm at 14.5 W, the RGB models 1100 lm at 22 W. There are five models; the RGB options include models with the RC1100 remote control. The lamp comes with a 2.5 m cable.
CH-AYD-0106-01
- Power
- 14.5-22W
- Luminous Flux
- 1100-1485lm
- Compatible opening
- Existing PAR56 floodlight (retrofit)
- List price
- From €93.45 + VAT
Prices are list prices dated 16.06.2026, excluding VAT.
Suitable pool and installation
Models and price
5 models
List price €93.45 - €273 excl. VAT
Lowest list price: LumiPlus Essential PAR56 bulb · White
List price, excluding VAT. The final figure depends on quantity and scope and is given in the quotation.
See all models and technical dataCompatibility and connections
- Compatible opening
- Existing PAR56 floodlight (retrofit)
- Power supply
- 12 V AC, through the pool transformer
- Apparent power
- 20 VA white and warm white, 29 VA RGB
- Cable
- 2.5 m
- RGB control
- Push button or RC1100 remote control with Range Extender
// Models
LumiPlus PAR56 2.0 Pool LED Lamp models, with list prices and technical data.
5 products
LumiPlus Essential PAR56 bulb · White
RecommendedCode CH-AYD-0106-01
- Power
- 14.5 W
- Luminous Flux
- 1485 lm
Price€93.45 + VATLumiPlus Essential PAR56 bulb · Warm white
Code CH-AYD-0106-02
- Power
- 14.5 W
- Luminous Flux
- 1485 lm
Price€93.45 + VATLumiPlus Essential PAR56 bulb · RGB
Code CH-AYD-0106-03
- Power
- 22 W
- Luminous Flux
- 1100 lm
Price€126 + VATLumiPlus Essential PAR56 bulb · RGB RC1100 + remote control
Code CH-AYD-0106-04
- Power
- 22 W
- Luminous Flux
- 1100 lm
Price€273 + VATLumiPlus Essential PAR56 bulb · RGB RC1100
Code CH-AYD-0106-05
- Power
- 22 W
- Luminous Flux
- 1100 lm
Price€183.75 + VAT
// 01 · Technical table
LumiPlus PAR56 2.0 Pool LED Lamp technical values
Where a value changes from model to model, every option is listed in that row; the details for each model are in the model list below.
| Specification | Value |
|---|---|
| Manufacturer Code | 73761 / 73761WW / 75767 / 75771 / 75772 |
| Light colour | White / Warm white / RGB / RGB RC1100 |
| Power | 14.5 W / 22 W |
| Apparent power | 20 VA / 29 VA |
| Luminous Flux | 1485 lm / 1100 lm |
| Energy efficiency class | E / G |
| Voltage | 12 V AC |
| Cable Length | 2.5 m |
| Compatibility | PAR56 projectors (retrofit) |
// 02 · Use
Users and applications
It is chosen by those who want to convert only the lamp to LED in a pool with a PAR56 floodlight. The floodlight body, niche and cable line stay in place; only the lamp changes. The light colour is determined by use: white for a crisp light, warm white for a warmer tone, RGB for colour and effects. RGB options with remote control are also available.
- Existing pools with PAR56 floodlights
- Renovation work where only the lamp is converted to LED
- Pools where the light colour is decided in advance (white, warm white)
- Pools where colour and effect are selected by remote control (RGB RC1100)
// 03 · Installation and compatibility
Installation and compatible equipment
The lamp replaces the old lamp in the existing PAR56 floodlight; the niche and cable line stay as they are. As the supply is 12 V AC, the line comes from the Pool Lighting Transformer. The transformer rating is compared with the total VA of the lamps on the line: 20 VA for white and warm white, 29 VA for RGB. Cable joints are made in the Pool Lighting Junction Box.
- The power to the pool lighting circuit is switched off at the panel.
- The floodlight is removed from the niche and the old lamp is taken out.
- The 2.5 m cable of the lamp is joined to the line; the joint stays in the Pool Lighting Junction Box.
- The lamp is placed in the floodlight and the floodlight is seated in the niche.
- The transformer rating is checked against the total VA of the lamps.
// 04 · Maintenance
Maintenance checkpoints
The routine task is to wipe the lens during pool cleaning. Each time the floodlight is removed from the niche, the seal is renewed and the cable entry is checked for traces of water. On the RGB models, the colour programme is reselected with the push button or with the RC1100 remote control and Range Extender. When a lamp is added to the line, the transformer load is recalculated.
- The seal is renewed each time the floodlight is removed.
- The cable entry and junction box are checked for traces of water.
- The lens is wiped with a non-abrasive cloth.
- When a lamp is added, the transformer load is recalculated.
// 05 · Information form
Request information on this product
Leave your name and contact details, and your customer representative will get back to you about the models of this product, its fit for your pool and an up-to-date quote.
Subject of the form
LumiPlus PAR56 2.0 Pool LED Lamp
- Product
- LumiPlus PAR56 2.0 Pool LED Lamp
- Category
- Pool Lighting Systems
- Number of models
- 5
- Code
- CH-AYD-0106-01 ... CH-AYD-0106-05
Your request is recorded under the name of this product. If you prefer not to wait, you can also reach us on +90 216 475 39 37.
Your contact details
Name, surname, phone and email are enough.
// 06 · Reviews
LumiPlus PAR56 2.0 Pool LED Lamp reviews
If you use this product or have used our service for it, share your experience. Every review is published after our team verifies it, and ratings are calculated from verified reviews only.
Average rating
0/5
Verified reviews: 0
- 5 out of 5 stars
- 0
- 4 out of 5 stars
- 0
- 3 out of 5 stars
- 0
- 2 out of 5 stars
- 0
- 1 out of 5 stars
- 0
Reviews are verified and published by the Çilek Havuz team. A product review covers the product itself; a service review covers delivery, installation and communication.
There are no verified reviews for this product yet. Be the first to write one.
Write a review// 07 · Related products
Products considered together
First the products in the same family, then the power, connection and control parts it needs to run, and finally the complementary products usually chosen with it.
// 08 · Services
Work carried out with this product
LumiPlus PAR56 2.0 Pool LED Lamp can be purchased on its own or installed as part of a pool construction or maintenance project.
- Swimming Pool ConstructionReinforced-concrete, prefabricated and infinity swimming pools, built turnkey for villa, residential and commercial projects.
- Infinity PoolsPools that open onto the view, with water spilling over the edge into a balance tank.
- Pool MaintenanceWater chemistry, equipment and periodic maintenance.
- Ornamental PoolsDecorative water features with fountains, cascades and lighting.
- M. S. · Infinity PoolÇatalca, Istanbul
// 09 · Guides
Selection and installation guides
These articles cover the calculations, comparisons and installation details considered when choosing and installing LumiPlus PAR56 2.0 Pool LED Lamp.
// 10 · Data sheet and catalogue
Printable documents
The technical data sheet is a single A4 page. The product catalogue brings together the cover, images, model list and technical table.
- Product details
- LumiPlus PAR56 2.0 Pool LED Lamp
- Model
- 5
- Code
- CH-AYD-0106-01 - CH-AYD-0106-05
- Category
- Pool Lighting Systems
// 11 · Design and catalogues
Set up your project on screen first, then review the products in our catalogues.
In the design studio you can build your space with its materials and colours; in the product catalogues you can see models, technical sheets and list prices.
Pool
Design studio
Build your pool, sauna, steam room or Turkish hammam on screen with lining, timber and marble options, then request a quote with your selection.
Where would you like to start?
Product catalogues
Models, technical sheets and list prices of our product groups are on the category pages.
Next step
Let us discuss your project in the way that suits you best.
You can fill in the form for a written quote, schedule a video project presentation or ask us to survey your project site.
Get a Quote
Send us your dimensions and expectations in writing.
Online presentation
Video project presentation
On-site survey
Inspection at your project site
// 12 · Company & Contact
To talk about your project, call or write to us.
Legal Name
Çilek Havuz
Founded
1998 · Istanbul
Head Office
Çilek Plaza, Eyüp Sultan Mah. Yakacık Cd. Feshane Cd. No: 2 D:4 D:1, 34885 Sancaktepe / İstanbul
Service Area
All of Türkiye · exports to 14 countries
Branches
Kyrgyzstan · Egypt · Algeria · Iraq
Showroom
Plan a showroom visit
At our showroom in Çilek Plaza, Sancaktepe, you can discuss your project with our team. We recommend booking an appointment by phone before your visit.
Working Hours
- Monday – Friday · 08:00 – 17:30
- Saturday · 08:00 – 12:30
- Closed on Sunday
Questions
About LumiPlus PAR56 2.0 Pool LED Lamp: frequently asked questions
Çilek Havuz Corporate
Pool & Wellness Engineering
- Response Time
- Same day
- Channels
- Phone · Email · WhatsApp
If the answer you are looking for is not here, send your question directly to us and our team will reply as soon as possible.
+90 216 475 39 37No; LumiPlus PAR56 2.0 is a lamp only and is fitted inside an existing PAR56 floodlight. If a complete light with a frame is wanted, the LumiPlus Essential PAR56 floodlight is chosen; if it is wanted with the niche, the LumiPlus PAR56 Complete Floodlight Kit. The lamp comes with a 2.5 m cable and runs on 12 V AC.
Çilek Havuz Corporate
The white and warm white models deliver 1485 lm at 14.5 W; both have energy class E. The RGB models deliver 1100 lm at 22 W and are class G. The light tone is selected between white and warm white, while colour and effect are selected with the RGB model.
Çilek Havuz Corporate
The RGB RC1100 + Remote Control model includes the RC1100 remote control together with the lamp. The RGB RC1100 model is a lamp only and is chosen if the pool already has an RC1100 remote control. The RC1100 lamp works with the remote control only together with the Range Extender. The plain RGB model is controlled with a push button. On all three RGB models the power is 22 W and the apparent power 29 VA.
Çilek Havuz Corporate
LumiPlus PAR56 2.0 comes in white, warm white and RGB models; its RGB model delivers 1100 lm at 22 W. The LumiPlus PAR56 Plug&Play Lamp is RGB only, delivers 2000 lm at 34.5 W and is controlled with the 74399 remote control. Version 2.0 is chosen for white light and lower power, Plug&Play for higher-lumen RGB.
Çilek Havuz Corporate
The white and warm white models draw 20 VA, the RGB models 29 VA of apparent power. The rating of the transformer on the line must not be lower than the total VA of the lamps. If the existing transformer is not sufficient, a Pool Lighting Transformer of suitable rating is chosen. The power is 14.5 W on the white and warm white models and 22 W on the RGB model.
Çilek Havuz Corporate
The white and warm white lamp draws 20 VA, the RGB lamp 29 VA. A 100 VA transformer carries 3 RGB lamps. With 5 white lamps the load is 100 VA, exactly equal to the transformer rating; to leave a margin, 130 VA is chosen. The Pool Lighting Transformer comes in 100, 130, 300 and 600 VA models.
Çilek Havuz Corporate
White has the highest light output. The white and warm white models deliver 1485 lm at 14.5 W and are class E. The RGB models deliver 1100 lm at 22 W and are class G. On the RGB lamp, colour and effect can be selected; white is chosen for steady, strong lighting and RGB for a coloured scene.
