Hydrospin Pool Pre-Filter, Centrifugal Pool Pre-Filter.

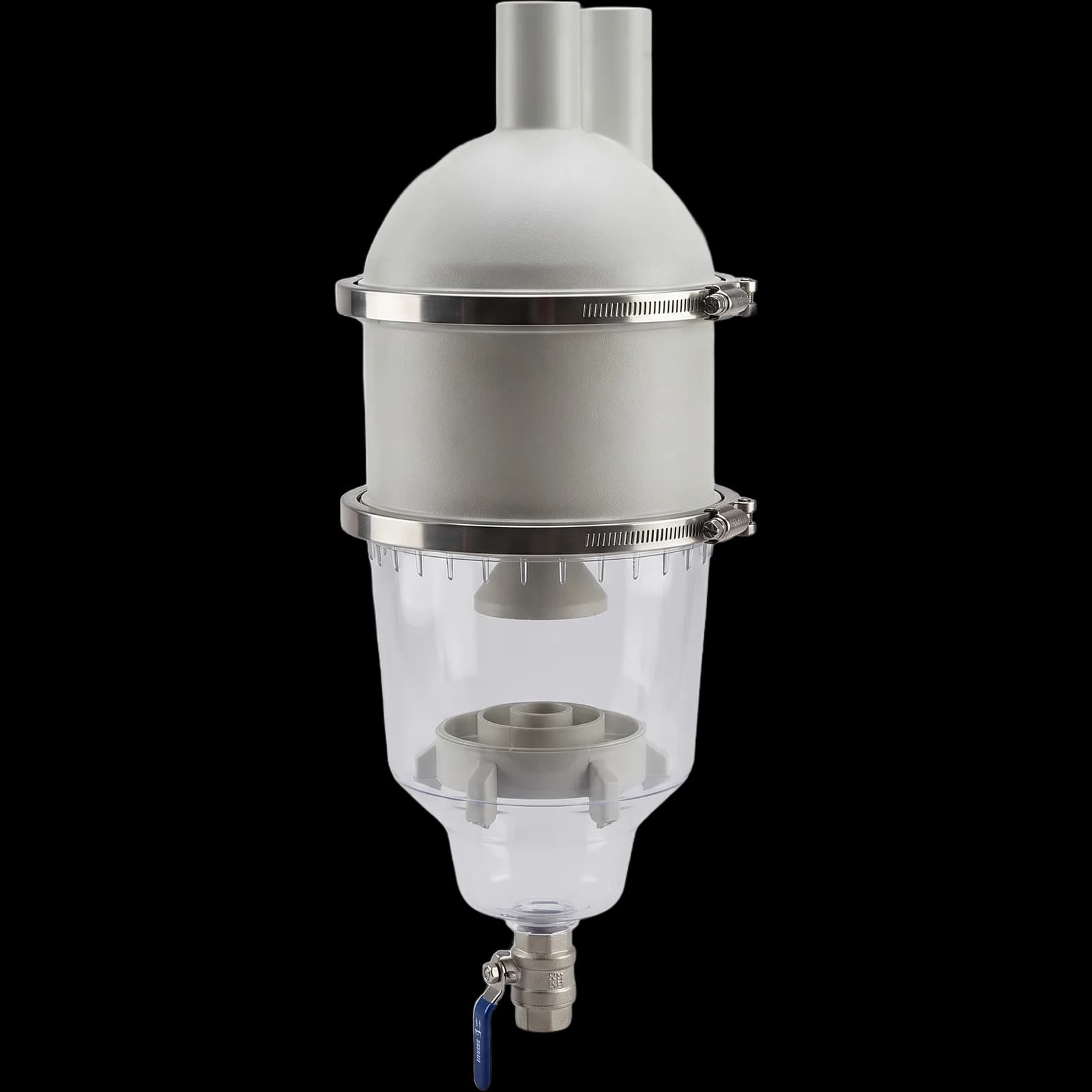

Hydrospin is a centrifugal pre-filter that separates coarse dirt in pool water before it reaches the main filter. Çilek Havuz supplies Hydrospin through quotes and as part of its projects. There are two models: Hydrospin provides a flow rate of 5-30 m³/h, a Ø63 connection and 40 µm fineness; Hydrospin Compact provides 3-16.5 m³/h, a Ø50 connection and 60 µm fineness. The maximum operating pressure is 2.5 bar.
CH-MEK-0103-02
- Connection
- Ø63 or Ø50
- List price
- From €430.50 + VAT
Prices are list prices dated 16.06.2026, excluding VAT.
Suitable pool and installation
Models and price
2 models
List price €430.50 - €735 excl. VAT
Lowest list price: Hydrospin Compact
List price, excluding VAT. The final figure depends on quantity and scope and is given in the quotation.
See all models and technical dataCompatibility and connections
- Connection
- Ø63 or Ø50
- Flow rate
- 3-30 m³/h
- Pressure
- Max. 2.5 bar
- Retention fineness
- 40 or 60 µm
// Models
Hydrospin Pool Pre-Filter models, with list prices and technical data.
2 products
Hydrospin
Code CH-MEK-0103-01
- Flow Rate
- 5-30 m³/h
Price€735 + VATHydrospin Compact
RecommendedCode CH-MEK-0103-02
- Flow Rate
- 3-16.5 m³/h
Price€430.50 + VAT
// 01 · Technical table
Hydrospin Pool Pre-Filter technical values
Where a value changes from model to model, every option is listed in that row; the details for each model are in the model list below.
| Specification | Value |
|---|---|
| Manufacturer Code | 45289 / 53743 |
| Filter Type | Centrifugal pre-filter |
| Flow Rate | 5-30 m³/h / 3-16.5 m³/h |
| Filtration Fineness | 40 µm / 60 µm |
| Max. Operating Pressure | 2.5 bar |
| Connection | Ø 63 / Ø 50 |
| Weight | 7.8 kg / 4.0 kg |
// 02 · Use
Users and applications
Hydrospin is chosen as a pre-filter that separates coarse dirt from the water before it goes to the main filter. The model is set by the flow rate and pipe diameter of the line: Hydrospin covers 5-30 m³/h with a Ø63 connection, and Hydrospin Compact 3-16.5 m³/h with a Ø50 connection. Hydrospin works with 24 hydrocyclones and is cleaned without switching off the pump.
- Lines that need pre-separation ahead of the main filter
- Hydrospin for a flow rate of 5-30 m³/h on a Ø63 pipeline
- Hydrospin Compact for a flow rate of 3-16.5 m³/h on a Ø50 pipeline
- Installations that need a pre-filter cleaned without switching off the pump
// 03 · Installation and compatibility
Installation and compatible equipment
Hydrospin is fitted in the pipeline between the pump and the main filter. The pipe diameter determines the choice of model: Hydrospin for a Ø63 line, Hydrospin Compact for a Ø50 line. A floor support is included with both models; a wall support is included with Hydrospin Compact and is a separate accessory for Hydrospin. The line pressure must not exceed 2.5 bar.
- The flow rate and pipe diameter of the line are determined, and the model is chosen accordingly.
- The pre-filter is placed in the line between the pump and the main filter.
- The inlet and outlet connections are made to suit the pipe diameter.
- The line pressure is checked to make sure it does not exceed 2.5 bar.
// 04 · Maintenance
Maintenance checkpoints
Hydrospin is cleaned without needing to switch off the pump. Cleaning uses 5 litres of water for Hydrospin and 15 litres for Hydrospin Compact. The cleaning connection is 1 inch on Hydrospin and 3/4 inch on Hydrospin Compact. During maintenance, the cleaning connection and the other connections are checked for leaks.
- Cleaning is done through the cleaning connection without switching off the pump.
- 5 litres of cleaning water are used for Hydrospin and 15 litres for Hydrospin Compact.
- The lid and connections are checked for leaks.
// 05 · Information form
Request information on this product
Leave your name and contact details, and your customer representative will get back to you about the models of this product, its fit for your pool and an up-to-date quote.
Subject of the form
Hydrospin Pool Pre-Filter
- Product
- Hydrospin Pool Pre-Filter
- Category
- Pool Mechanical Equipment
- Number of models
- 2
- Code
- CH-MEK-0103-01 ... CH-MEK-0103-02
Your request is recorded under the name of this product. If you prefer not to wait, you can also reach us on +90 216 475 39 37.
Your contact details
Name, surname, phone and email are enough.
// 06 · Reviews
Hydrospin Pool Pre-Filter reviews
If you use this product or have used our service for it, share your experience. Every review is published after our team verifies it, and ratings are calculated from verified reviews only.
Average rating
0/5
Verified reviews: 0
- 5 out of 5 stars
- 0
- 4 out of 5 stars
- 0
- 3 out of 5 stars
- 0
- 2 out of 5 stars
- 0
- 1 out of 5 stars
- 0
Reviews are verified and published by the Çilek Havuz team. A product review covers the product itself; a service review covers delivery, installation and communication.
There are no verified reviews for this product yet. Be the first to write one.
Write a review// 07 · Related products
Products considered together
First the products in the same family, then the power, connection and control parts it needs to run, and finally the complementary products usually chosen with it.
// 08 · Services
Work carried out with this product
Hydrospin Pool Pre-Filter can be purchased on its own or installed as part of a pool construction or maintenance project.
- Swimming Pool ConstructionReinforced-concrete, prefabricated and infinity swimming pools, built turnkey for villa, residential and commercial projects.
- Infinity PoolsPools that open onto the view, with water spilling over the edge into a balance tank.
- Prefabricated PoolsFast-install modular prefabricated pool systems.
- Pool MaintenanceWater chemistry, equipment and periodic maintenance.
- Pool ConsultingExpert consulting on project, materials and budget.
- Yakacık Msy Yapı · Villa PoolYakacık, Istanbul
// 09 · Guides
Selection and installation guides
These articles cover the calculations, comparisons and installation details considered when choosing and installing Hydrospin Pool Pre-Filter.
// 10 · Data sheet and catalogue
Printable documents
The technical data sheet is a single A4 page. The product catalogue brings together the cover, images, model list and technical table.
- Product details
- Hydrospin Pool Pre-Filter
- Model
- 2
- Code
- CH-MEK-0103-01 - CH-MEK-0103-02
- Category
- Pool Mechanical Equipment
// 11 · Design and catalogues
Set up your project on screen first, then review the products in our catalogues.
In the design studio you can build your space with its materials and colours; in the product catalogues you can see models, technical sheets and list prices.
Pool
Design studio
Build your pool, sauna, steam room or Turkish hammam on screen with lining, timber and marble options, then request a quote with your selection.
Where would you like to start?
Product catalogues
Models, technical sheets and list prices of our product groups are on the category pages.
Next step
Let us discuss your project in the way that suits you best.
You can fill in the form for a written quote, schedule a video project presentation or ask us to survey your project site.
Get a Quote
Send us your dimensions and expectations in writing.
Online presentation
Video project presentation
On-site survey
Inspection at your project site
// 12 · Company & Contact
To talk about your project, call or write to us.
Legal Name
Çilek Havuz
Founded
1998 · Istanbul
Head Office
Çilek Plaza, Eyüp Sultan Mah. Yakacık Cd. Feshane Cd. No: 2 D:4 D:1, 34885 Sancaktepe / İstanbul
Service Area
All of Türkiye · exports to 14 countries
Branches
Kyrgyzstan · Egypt · Algeria · Iraq
Showroom
Plan a showroom visit
At our showroom in Çilek Plaza, Sancaktepe, you can discuss your project with our team. We recommend booking an appointment by phone before your visit.
Working Hours
- Monday – Friday · 08:00 – 17:30
- Saturday · 08:00 – 12:30
- Closed on Sunday
Questions
About Hydrospin Pool Pre-Filter: frequently asked questions
Çilek Havuz Corporate
Pool & Wellness Engineering
- Response Time
- Same day
- Channels
- Phone · Email · WhatsApp
If the answer you are looking for is not here, send your question directly to us and our team will reply as soon as possible.
+90 216 475 39 37Hydrospin is a pre-filter that uses 24 hydrocyclones to separate solid particles in the water going to the main filter. Hydrospin retains solid waste down to 40 µm and Hydrospin Compact down to 60 µm. This reduces the dirt that reaches the main filter. The pre-filter does not replace the main filter; it is a separate part fitted between the pump and the filter.
Çilek Havuz Corporate
The difference lies in the flow rate, connection diameter and fineness. Hydrospin provides 5-30 m³/h, a Ø63 connection and 40 µm fineness, and weighs 7.8 kg. Hydrospin Compact provides 3-16.5 m³/h, a Ø50 connection and 60 µm fineness, and weighs 4 kg. The maximum operating pressure is 2.5 bar on both models.
Çilek Havuz Corporate
Hydrospin works in the 5-30 m³/h range and Hydrospin Compact in the 3-16.5 m³/h range. The required flow rate is found by dividing the pool volume by the turnover time; for residential pools the turnover time is 4-6 hours. If the calculated flow rate does not fall within a model's range, the next model up is chosen. The flow rate of the pre-filter should be enough to meet the flow rate of the main filter.
Çilek Havuz Corporate
The Ø63 connection is found on Hydrospin and the Ø50 connection on Hydrospin Compact. The choice of model therefore depends on the diameter of the pipeline. If the line is Ø63, Hydrospin is fitted; if it is Ø50, Hydrospin Compact. Even if the flow rate range suits, a model whose connection diameter does not match the line is not chosen; the choice is made on flow rate and diameter together.
Çilek Havuz Corporate
It is cleaned without switching off the pump. Hydrospin uses 5 litres and Hydrospin Compact 15 litres of cleaning water. Cleaning is done through the cleaning connection on the body; the connection is 1 inch on Hydrospin and 3/4 inch on Hydrospin Compact. The collected solid particles gather in the sedimentation, purge and thickening chambers and do not pass to the main filter.
Çilek Havuz Corporate
The product code of Hydrospin is 45289 and that of Hydrospin Compact is 53743. The code identifies the model in orders and spare parts enquiries. Hydrospin has a flow rate of 5-30 m³/h and a Ø63 connection, and Hydrospin Compact a flow rate of 3-16.5 m³/h and a Ø50 connection. The technical data sheet gives all values for both models together.
Çilek Havuz Corporate
No; Hydrospin only carries out pre-separation. It is the main filter that cleans the water, and Hydrospin works ahead of it. Hydrospin retains solid waste down to 40 µm and Hydrospin Compact down to 60 µm; finer particles go on to the main filter and are separated there. The line pressure should be no more than 2.5 bar.
