Bellasun Pool Cover Roller System, Solar-Powered Pool Cover.

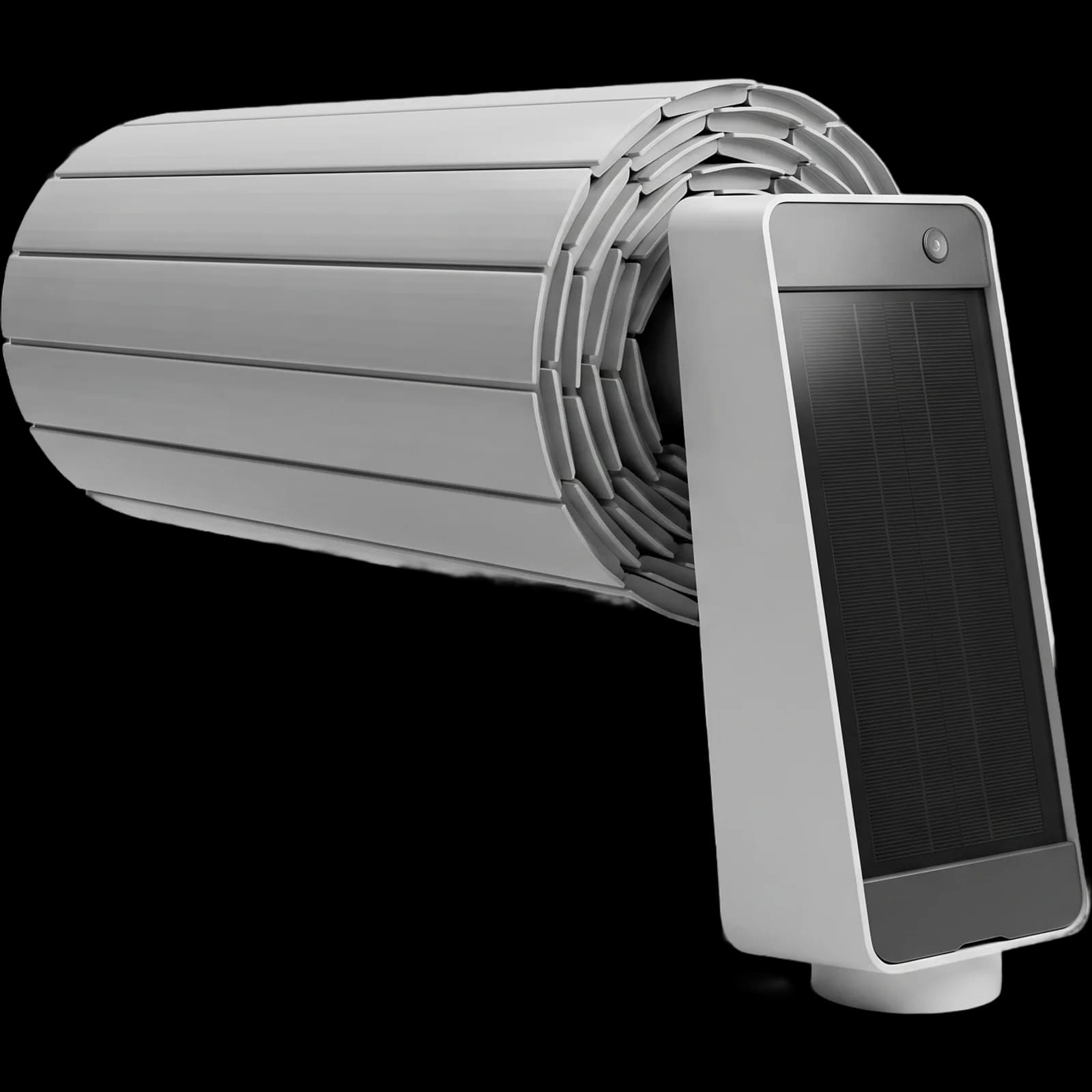

The Bellasun Pool Cover Roller System is a solar-powered above-ground automatic pool cover that needs no electrical connection. Çilek Havuz supplies Bellasun through quotes and as part of its projects. Its four sizes range from 4 x 8 to 6 x 12 m, and the largest pool size is 6.03 x 12 m. The battery performs 20 openings and closings on one charge. The shaft is anodised aluminium and the legs are galvanised aluminium.
CH-KAP-0103-01
- Energy
- Solar panel and battery
- List price
- From €12,390 + VAT
Prices are list prices dated 16.06.2026, excluding VAT.
Suitable pool and installation
Models and price
4 models
List price €12,390 - €17,430 excl. VAT
Lowest list price: Bellasun above-ground (solar) · 4x8m
List price, excluding VAT. The final figure depends on quantity and scope and is given in the quotation.
See all models and technical dataCompatibility and connections
- Energy
- Solar panel and battery
- Opening and closing
- 20, on one charge
- Pool size
- 4 x 8 - 6 x 12 m
- Shaft diameter
- Ø146 or Ø196 mm
// Models
Bellasun Pool Cover Roller System models, with list prices and technical data.
4 products
Bellasun above-ground (solar) · 4x8m
RecommendedCode CH-KAP-0103-01
Price€12,390 + VATBellasun above-ground (solar) · 4x10m
Code CH-KAP-0103-02
Price€13,912.50 + VATBellasun above-ground (solar) · 5x10m
Code CH-KAP-0103-03
Price€15,540 + VATBellasun above-ground (solar) · 6x12m
Code CH-KAP-0103-04
Price€17,430 + VAT
// 01 · Technical table
Bellasun Pool Cover Roller System technical values
Where a value changes from model to model, every option is listed in that row; the details for each model are in the model list below.
| Specification | Value |
|---|---|
| Pool Size | 4 x 8 m / 4 x 10 m / 5 x 10 m / 6 x 12 m |
| Motor Type | Tubular / motorised shaft (by model) |
// 02 · Use
Users and applications
Bellasun is chosen where an electrical line cannot be run to the pool edge, or where running one is not wanted. The solar panel charges the battery, and the battery performs 20 openings and closings on one charge. It is designed for easy installation on existing pools. The solar panel is black and the stand has a new-generation design.
- Pool edges with no electrical connection
- Projects that want easy installation on an existing pool
- Pools up to 6.03 x 12 m
- Sites with a sunlit position for the panel
// 03 · Installation and compatibility
Installation and compatible equipment
On Bellasun, the shaft and legs are installed at the pool edge and no electrical line is run. The solar panel charges the battery, and a charge protection regulator protects the battery. The motor is of the removable type. The panel is placed in a sunlit position away from shaded areas. As Cover Connect is not compatible with solar-powered retraction systems, it is not used with this system.
- The Bellasun size that suits the pool size is selected.
- The shaft and galvanised aluminium legs are placed at the pool edge.
- The solar panel is mounted in a sunlit position away from shade.
- Once the battery has charged, the cover is tested by opening and closing it.
// 04 · Maintenance
Maintenance checkpoints
Maintenance on Bellasun centres on the solar panel and battery system. When the panel surface is kept clean and free of shade, the battery charges. As the battery performs 20 openings and closings on one charge, frequency of use is monitored against the state of charge. The anodised aluminium shaft and galvanised legs are kept clean. As the motor is removable, it is taken off the shaft when service is needed.
- The solar panel surface is kept clean and free of shade.
- The state of charge of the battery is monitored against frequency of use.
- The shaft and legs are kept clean.
- Leaves and debris are removed from the cover surface before it is opened.
// 05 · Information form
Request information on this product
Leave your name and contact details, and your customer representative will get back to you about the models of this product, its fit for your pool and an up-to-date quote.
Subject of the form
Bellasun Pool Cover Roller System
- Product
- Bellasun Pool Cover Roller System
- Category
- Pool Cover Systems
- Number of models
- 4
- Code
- CH-KAP-0103-01 ... CH-KAP-0103-04
Your request is recorded under the name of this product. If you prefer not to wait, you can also reach us on +90 216 475 39 37.
Your contact details
Name, surname, phone and email are enough.
// 06 · Reviews
Bellasun Pool Cover Roller System reviews
If you use this product or have used our service for it, share your experience. Every review is published after our team verifies it, and ratings are calculated from verified reviews only.
Average rating
0/5
Verified reviews: 0
- 5 out of 5 stars
- 0
- 4 out of 5 stars
- 0
- 3 out of 5 stars
- 0
- 2 out of 5 stars
- 0
- 1 out of 5 stars
- 0
Reviews are verified and published by the Çilek Havuz team. A product review covers the product itself; a service review covers delivery, installation and communication.
There are no verified reviews for this product yet. Be the first to write one.
Write a review// 07 · Related products
Products considered together
First the products in the same family, then the power, connection and control parts it needs to run, and finally the complementary products usually chosen with it.
// 08 · Services
Work carried out with this product
Bellasun Pool Cover Roller System can be purchased on its own or installed as part of a pool construction or maintenance project.
- Swimming Pool ConstructionReinforced-concrete, prefabricated and infinity swimming pools, built turnkey for villa, residential and commercial projects.
- Infinity PoolsPools that open onto the view, with water spilling over the edge into a balance tank.
- Pool MaintenanceWater chemistry, equipment and periodic maintenance.
// 09 · Guides
Selection and installation guides
These articles cover the calculations, comparisons and installation details considered when choosing and installing Bellasun Pool Cover Roller System.
// 10 · Data sheet and catalogue
Printable documents
The technical data sheet is a single A4 page. The product catalogue brings together the cover, images, model list and technical table.
- Product details
- Bellasun Pool Cover Roller System
- Model
- 4
- Code
- CH-KAP-0103-01 - CH-KAP-0103-04
- Category
- Pool Cover Systems
// 11 · Design and catalogues
Set up your project on screen first, then review the products in our catalogues.
In the design studio you can build your space with its materials and colours; in the product catalogues you can see models, technical sheets and list prices.
Pool
Design studio
Build your pool, sauna, steam room or Turkish hammam on screen with lining, timber and marble options, then request a quote with your selection.
Where would you like to start?
Product catalogues
Models, technical sheets and list prices of our product groups are on the category pages.
Next step
Let us discuss your project in the way that suits you best.
You can fill in the form for a written quote, schedule a video project presentation or ask us to survey your project site.
Get a Quote
Send us your dimensions and expectations in writing.
Online presentation
Video project presentation
On-site survey
Inspection at your project site
// 12 · Company & Contact
To talk about your project, call or write to us.
Legal Name
Çilek Havuz
Founded
1998 · Istanbul
Head Office
Çilek Plaza, Eyüp Sultan Mah. Yakacık Cd. Feshane Cd. No: 2 D:4 D:1, 34885 Sancaktepe / İstanbul
Service Area
All of Türkiye · exports to 14 countries
Branches
Kyrgyzstan · Egypt · Algeria · Iraq
Showroom
Plan a showroom visit
At our showroom in Çilek Plaza, Sancaktepe, you can discuss your project with our team. We recommend booking an appointment by phone before your visit.
Working Hours
- Monday – Friday · 08:00 – 17:30
- Saturday · 08:00 – 12:30
- Closed on Sunday
Questions
About Bellasun Pool Cover Roller System: frequently asked questions
Çilek Havuz Corporate
Pool & Wellness Engineering
- Response Time
- Same day
- Channels
- Phone · Email · WhatsApp
If the answer you are looking for is not here, send your question directly to us and our team will reply as soon as possible.
+90 216 475 39 37No, Bellasun needs no electrical connection to operate. The motor runs on a battery charged by the solar panel. A charge protection regulator protects the battery. Installation on existing pools is therefore carried out without running cables. The panel needs sunlight for charging. It also works in locations with no electrical line.
Çilek Havuz Corporate
The Bellasun battery performs 20 openings and closings on one charge. The solar panel charges the battery, and the regulator protects it. If use exceeds this capacity, the panel is left to recharge the battery. Keeping the panel out of shade matters for the charging time and is taken into account during installation. The state of charge is monitored against frequency of use.
Çilek Havuz Corporate
The difference lies in the energy source and pool capacity. Bellasun is powered by a solar panel and fits pools up to 6.03 x 12 m. Octeo has a tubular motor, needs a mains supply and fits pools up to 7.5 x 17 m. Octeo has a cast aluminium structure, while Bellasun has an anodised aluminium shaft.
Çilek Havuz Corporate
The Bellasun shaft is Ø146 or Ø196 mm in diameter. The shaft is made of anodised aluminium and the legs of galvanised aluminium. Bellasun comes in four sizes: 4 x 8, 4 x 10, 5 x 10 and 6 x 12 m. It fits pools with an inner size of up to 6.03 x 12 m. The motor is of the removable type.
Çilek Havuz Corporate
No, Bellasun is not used with Cover Connect. Fluidra Cover Connect Pool Cover Wireless Control is compatible with all underwater and above-ground automatic covers except solar-powered retraction systems. As Bellasun is solar-powered, it falls outside this scope. Octeo and Sveltea work with this control.
Çilek Havuz Corporate
The panel is placed in a sunlit position away from shaded areas. If the panel is left in shade, it cannot charge the battery sufficiently. The panel position is therefore chosen before installation. Keeping the panel surface clean is also needed for charging and is one of the routine maintenance tasks.
Çilek Havuz Corporate
Bellasun fits pools with an inner size of up to 6.03 x 12 m. It has four standard sizes: 4 x 8, 4 x 10, 5 x 10 and 6 x 12 m. Other sizes are priced on request. For larger pools, Octeo fits pools up to 7.5 x 17 m.
