Automatic Pool Covers
Roussillon Hidden Automatic Cover, Underwater Automatic Pool Cover.

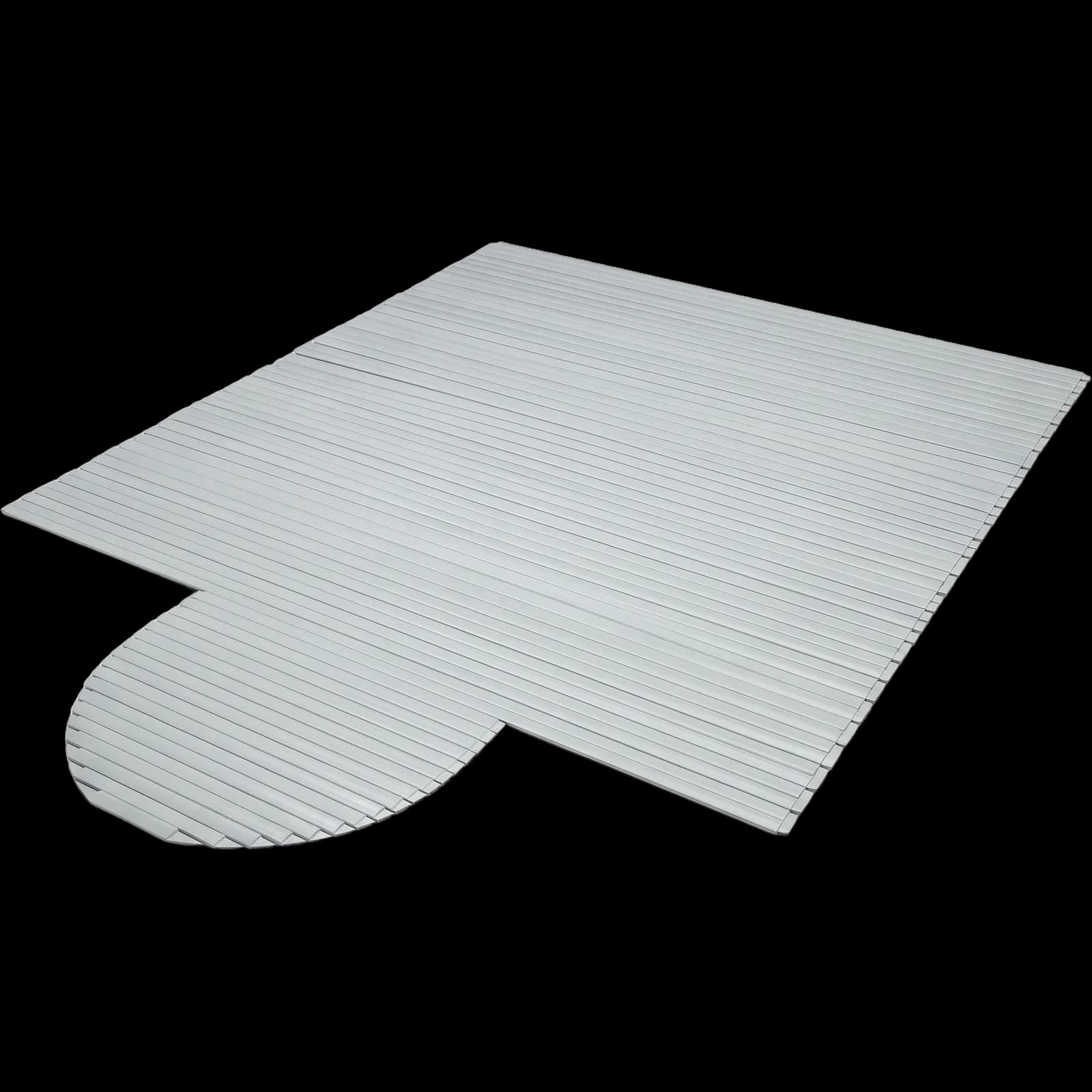

The Roussillon Hidden Automatic Cover is a motorised underwater pool cover installed below the water level of the pool. Çilek Havuz supplies Roussillon through quotes and as part of its projects. Its four sizes range from 3 x 6 to 6 x 12 m. The motor options are a dry motor, a tubular motor and a water-level motor. The cover and shaft sit in a separate section at one end of the pool, divided off by a wall or a PVC partition.
CH-KAP2-0001-01
- Layout
- Underwater, pit or partitioned
- List price
- From €16,642.50 + VAT
Prices are list prices dated 16.06.2026, excluding VAT.
Suitable pool and installation
Models and price
4 models
List price €16,642.50 - €24,255 excl. VAT
Lowest list price: 3 x 6 m
List price, excluding VAT. The final figure depends on quantity and scope and is given in the quotation.
See all models and technical dataCompatibility and connections
- Layout
- Underwater, pit or partitioned
- Motor
- Dry, tubular or water-level
- Pool size
- 3 x 6 - 6 x 12 m
- Separation
- Wall or PVC partition
// Models
Roussillon Hidden Automatic Cover models, with list prices and technical data.
4 products
3 x 6 m
RecommendedCode CH-KAP2-0001-01
- Pool Size
- 3 x 6 m
Price€16,642.50 + VAT4 x 8 m
Code CH-KAP2-0001-02
- Pool Size
- 4 x 8 m
Price€18,411.75 + VAT5 x 10 m
Code CH-KAP2-0001-03
- Pool Size
- 5 x 10 m
Price€20,748 + VAT6 x 12 m
Code CH-KAP2-0001-04
- Pool Size
- 6 x 12 m
Price€24,255 + VAT
// 01 · Technical table
Roussillon Hidden Automatic Cover technical values
Where a value changes from model to model, every option is listed in that row; the details for each model are in the model list below.
| Specification | Value |
|---|---|
| Pool Size | 3 x 6 m / 4 x 8 m / 5 x 10 m / 6 x 12 m |
| Motor Type | Dry motor / tubular motor / water-level motor |
| Installation type | Underwater (pit or compartment) |
| Protection Class (IP) | IP68 (water-level motor) |
// 02 · Use
Users and applications
Roussillon is chosen in projects that do not want a visible winding system around the pool. The cover and shaft sit below the water level in a separate compartment at one end of the pool. The motor type is determined by whether the pool is newly built and by its width. The position and size of the compartment are decided at the pool design stage.
- Projects that do not want a winding system visible around the pool
- Water-level motor for new pools under construction
- Tubular motor for pools already built
- Sites where a separate dry compartment can be formed at the end of the pool
// 03 · Installation and compatibility
Installation and compatible equipment
Roussillon is installed in the compartment set aside for the cover and shaft at one end of the pool. This compartment is separated from the pool with a wall during construction or with a PVC partition later; the PVC partition is sold separately. For control from a phone, Fluidra Cover Connect Pool Cover Wireless Control is added. The wireless control is compatible with all underwater automatic covers.
- The cover and shaft compartment is set in the pool design.
- The compartment is separated from the pool with a wall or PVC partition.
- Depending on its type, the motor is placed in the winding axle, in the dry compartment, or above the water level beneath the cover.
- Cover Connect is added for control from a phone.
// 04 · Maintenance
Maintenance checkpoints
The routine task on Roussillon is keeping the cover and shaft compartment clean. When leaves and debris do not enter the compartment, the cover moves freely. The movement of the cover is watched during opening and closing. As the wall or PVC partition joints separate the cover section from the main pool, they are checked for leaks.
- The cover and shaft compartment is kept clean.
- The movement of the cover is watched during opening and closing.
- On the water-level motor model, it is checked that the motor stays above the water level.
- The wall or PVC partition joints are checked for leaks.
// 05 · Information form
Request information on this product
Leave your name and contact details, and your customer representative will get back to you about the models of this product, its fit for your pool and an up-to-date quote.
Subject of the form
Roussillon Hidden Automatic Cover
- Product
- Roussillon Hidden Automatic Cover
- Category
- Pool Cover Systems
- Number of models
- 4
- Code
- CH-KAP2-0001-01 ... CH-KAP2-0001-04
Your request is recorded under the name of this product. If you prefer not to wait, you can also reach us on +90 216 475 39 37.
Your contact details
Name, surname, phone and email are enough.
// 06 · Reviews
Roussillon Hidden Automatic Cover reviews
If you use this product or have used our service for it, share your experience. Every review is published after our team verifies it, and ratings are calculated from verified reviews only.
Average rating
0/5
Verified reviews: 0
- 5 out of 5 stars
- 0
- 4 out of 5 stars
- 0
- 3 out of 5 stars
- 0
- 2 out of 5 stars
- 0
- 1 out of 5 stars
- 0
Reviews are verified and published by the Çilek Havuz team. A product review covers the product itself; a service review covers delivery, installation and communication.
There are no verified reviews for this product yet. Be the first to write one.
Write a review// 07 · Related products
Products considered together
First the products in the same family, then the power, connection and control parts it needs to run, and finally the complementary products usually chosen with it.
// 08 · Services
Work carried out with this product
Roussillon Hidden Automatic Cover can be purchased on its own or installed as part of a pool construction or maintenance project.
- Swimming Pool ConstructionReinforced-concrete, prefabricated and infinity swimming pools, built turnkey for villa, residential and commercial projects.
- Infinity PoolsPools that open onto the view, with water spilling over the edge into a balance tank.
- Pool MaintenanceWater chemistry, equipment and periodic maintenance.
// 09 · Guides
Selection and installation guides
These articles cover the calculations, comparisons and installation details considered when choosing and installing Roussillon Hidden Automatic Cover.
// 10 · Data sheet and catalogue
Printable documents
The technical data sheet is a single A4 page. The product catalogue brings together the cover, images, model list and technical table.
- Product details
- Roussillon Hidden Automatic Cover
- Model
- 4
- Code
- CH-KAP2-0001-01 - CH-KAP2-0001-04
- Category
- Pool Cover Systems
// 11 · Design and catalogues
Set up your project on screen first, then review the products in our catalogues.
In the design studio you can build your space with its materials and colours; in the product catalogues you can see models, technical sheets and list prices.
Pool
Design studio
Build your pool, sauna, steam room or Turkish hammam on screen with lining, timber and marble options, then request a quote with your selection.
Where would you like to start?
Product catalogues
Models, technical sheets and list prices of our product groups are on the category pages.
Next step
Let us discuss your project in the way that suits you best.
You can fill in the form for a written quote, schedule a video project presentation or ask us to survey your project site.
Get a Quote
Send us your dimensions and expectations in writing.
Online presentation
Video project presentation
On-site survey
Inspection at your project site
// 12 · Company & Contact
To talk about your project, call or write to us.
Legal Name
Çilek Havuz
Founded
1998 · Istanbul
Head Office
Çilek Plaza, Eyüp Sultan Mah. Yakacık Cd. Feshane Cd. No: 2 D:4 D:1, 34885 Sancaktepe / İstanbul
Service Area
All of Türkiye · exports to 14 countries
Branches
Kyrgyzstan · Egypt · Algeria · Iraq
Showroom
Plan a showroom visit
At our showroom in Çilek Plaza, Sancaktepe, you can discuss your project with our team. We recommend booking an appointment by phone before your visit.
Working Hours
- Monday – Friday · 08:00 – 17:30
- Saturday · 08:00 – 12:30
- Closed on Sunday
Questions
About Roussillon Hidden Automatic Cover: frequently asked questions
Çilek Havuz Corporate
Pool & Wellness Engineering
- Response Time
- Same day
- Channels
- Phone · Email · WhatsApp
If the answer you are looking for is not here, send your question directly to us and our team will reply as soon as possible.
+90 216 475 39 37It can; the motor type is chosen according to the construction status of the pool. The tubular motor is mounted on pools already built. The water-level motor is for newly built pools and existing pools of suitable width. The cover and shaft section can also be separated from the main pool later with a PVC partition; this partition is sold separately.
Çilek Havuz Corporate
The choice is made according to where the motor will sit and the construction status of the pool. The dry motor sits in a separate dry compartment below the water level. The tubular motor is fitted inside the winding axle. The water-level motor has protection class IP68 and sits beneath the cover, above the water level.
Çilek Havuz Corporate
On Roussillon, the section where the cover and shaft sit must be separated from the main pool. This rule applies to all motor types. The separation is made with a wall during construction or with a PVC partition later. The PVC partition is sold separately. The position and size of the compartment are set in the pool design.
Çilek Havuz Corporate
Roussillon is made in four sizes: 3 x 6, 4 x 8, 5 x 10 and 6 x 12 m. The product is custom made for each project. The pool size, motor type and compartment layout are finalised together at the design stage. The maximum width at which a motor type can be used also depends on the construction status of the pool.
Çilek Havuz Corporate
The difference lies in the position of the shaft relative to the pool. Roussillon sits underwater and shows no system around the pool; this requires a separating compartment. In the Above-Ground Automatic Cover range, the shaft sits above ground at the pool edge. Octeo, Sveltea, Manual Sveltea and Bellasun belong to this range.
Çilek Havuz Corporate
Roussillon can be operated from a phone with the wireless control accessory. Fluidra Cover Connect Pool Cover Wireless Control is compatible with all underwater automatic covers and works through a mobile app over Bluetooth. Cover Connect is a separate product and is added to Roussillon as an option. A quote is requested for the price of the accessory.
Çilek Havuz Corporate
No, the water-level motor sits above the water, beneath the cover. The motor has protection class IP68. The option that runs below the water level is the dry motor, which sits in a separate dry compartment. Which motor is suitable is determined by whether the pool is newly built. The decision is made in the pool design together with the separating compartment.
