Pool Disinfection Systems
Neolysis Spare Parts, UV Lamp and Electrode.
Neolysis Spare Parts is a group of spare parts for replacing the lamp, quartz sleeve and electrode of the AstralPool Neolysis S unit. Çilek Havuz supplies Neolysis Spare Parts through quotes and as part of its projects. The group contains 9 parts: 75 W and 90 W UV LP lamps, a 2x90 W lamp kit, the UV LP-20/25/30 quartz sleeve and 5 electrodes from 50 to 300 g/h.
CH-DEZ-0039-04
- Compatible unit
- AstralPool Neolysis S, 50 to 300 g/h
- List price
- From €231 + VAT
Prices are list prices dated 16.06.2026, excluding VAT.
Suitable pool and installation
Models and price
9 models
List price €231 - €20,475 excl. VAT
Lowest list price: UV LP-20/25/30 quartz sleeve
List price, excluding VAT. The final figure depends on quantity and scope and is given in the quotation.
See all models and technical dataCompatibility and connections
- Compatible unit
- AstralPool Neolysis S, 50 to 300 g/h
- Lamp
- 75 W, 90 W or 2x90 W kit
- Quartz sleeve
- UV LP-20/25/30, 75 W and 90 W lamps

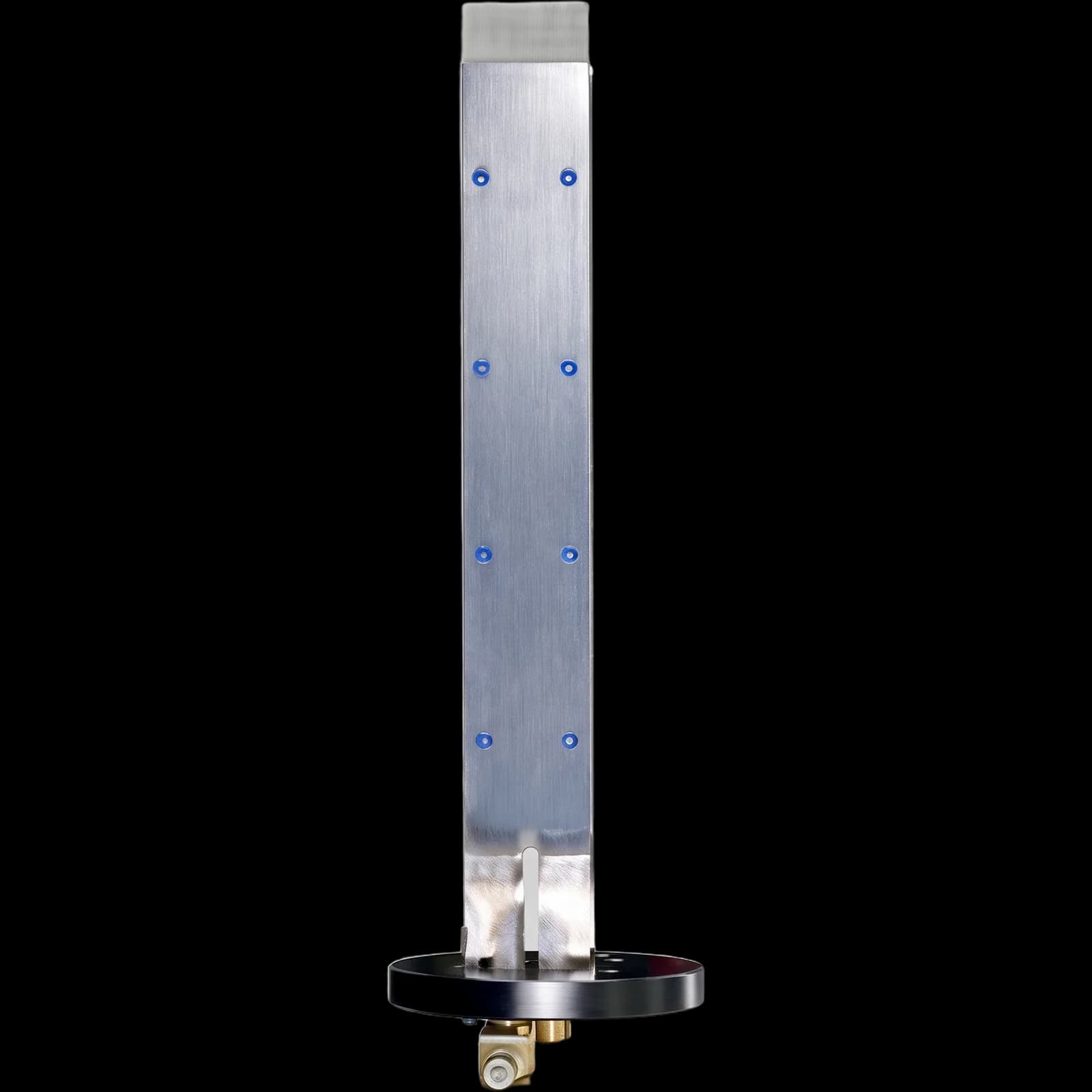

- Electrode
- 50, 80, 120, 180, 300 g/h
// Models
Neolysis Spare Parts models, with list prices and technical data.
9 products
75W UV LP-20 lamp
Code CH-DEZ-0039-01
- UV Lamp Power
- 75 W
Price€404.25 + VAT90W UV LP lamp
Code CH-DEZ-0039-02
- UV Lamp Power
- 90 W
Price€414.75 + VATUV LP 2x90W lamp kit
Code CH-DEZ-0039-03
- UV Lamp Power
- 2x90 W
Price€750.75 + VATUV LP-20/25/30 quartz sleeve
RecommendedCode CH-DEZ-0039-04
Price€231 + VAT50 g/h - 75W electrode
Code CH-DEZ-0039-05
- UV Lamp Power
- 75 W
- Chlorine Output
- 50 g/h
Price€4,410 + VAT80 g/h - 90W electrode
Code CH-DEZ-0039-06
- UV Lamp Power
- 90 W
- Chlorine Output
- 80 g/h
Price€6,615 + VAT120 g/h - 2x90W electrode
Code CH-DEZ-0039-07
- UV Lamp Power
- 2x90 W
- Chlorine Output
- 120 g/h
Price€9,817.50 + VAT180 g/h - 3x90W electrode
Code CH-DEZ-0039-08
- UV Lamp Power
- 3x90 W
- Chlorine Output
- 180 g/h
Price€14,437.50 + VAT300 g/h - 4x90W electrode
Code CH-DEZ-0039-09
- UV Lamp Power
- 4x90 W
- Chlorine Output
- 300 g/h
Price€20,475 + VAT
// 01 · Technical table
Neolysis Spare Parts technical values
Where a value changes from model to model, every option is listed in that row; the details for each model are in the model list below.
| Specification | Value |
|---|---|
| Manufacturer Code | 60608 / 60609 / 60619 / 60631 / 73550 / 73551 / 73552 / 73553 / 73554 |
| Compatibility | 57753 / 57763 / 57766 / 66142 / 66145 / 66148 / 57761 / 57764 / 57767 / 68117 / 68118 / 68119 / 66143 / 66146 / 66149 / 68120 / 68121 / 68122 / 68123 / 68124 / 68125 / 57762 / 57765 / 57768 / 66144 / 66147 / 66150 / 75 W and 90 W lamps / 66142 / 66145 / 66148 / 66143 / 66146 / 66149 / 66144 / 66147 / 66150 / 68120 / 68121 / 68122 / 68123 / 68124 / 68125 |
| Chlorine Output | 50 g/h / 80 g/h / 120 g/h / 180 g/h / 300 g/h (on some models) |
| UV Lamp Power | 75 W / 90 W / 2x90 W / 3x90 W / 4x90 W (on some models) |
| Weight | 0.10 kg / 0.12 kg / 0.20 kg (on some models) |
// 02 · Use
Users and applications
The Neolysis S unit has two separate consumable parts: the UV lamp and the electrolysis electrode. The lamp is renewed when it reaches its 13,000 hour life, and the electrode within the range of 12,000 to 15,000 hours. Parts are selected by the chlorine output and UV power of the unit. The lamp and quartz sleeve are also shared with some Neolysis LS units.
- Neolysis S UV units that have reached their lamp hours
- Neolysis S electrolysis cells with falling chlorine output
- Quartz sleeves that are cracked or permanently soiled
- Neolysis S units whose chlorine capacity and UV power on the rating plate are known
// 03 · Installation and compatibility
Installation and compatible equipment
Before the lamp is replaced, the power to the unit is cut. The old lamp is drawn out of the quartz sleeve, and the new lamp is fitted without touching its glass surface with bare hands. If the sleeve is to be replaced, it is renewed together with its seals. When replacing the electrode, the old electrode is removed and a new one of the same capacity is fitted. Which part fits is read from the chlorine capacity and UV power on the unit's rating plate.
- The chlorine output and UV power are read from the unit's rating plate.
- The power to the unit is cut.
- The lamp is drawn out of the sleeve and the new one is fitted wearing gloves.
- If necessary, the quartz sleeve is renewed together with its seals.
- When replacing the electrode, the old electrode is removed and a new one of the same capacity is fitted.
// 04 · Maintenance
Maintenance checkpoints
On Neolysis S, maintenance is planned with two counters: UV lamp hours and electrode hours. The quartz sleeve is periodically removed and cleaned of scale and dirt. For electrode life, the salt level is kept within the range of 5 to 6 g/L. The lamp is replaced at 13,000 hours and the electrode within the range of 12,000 to 15,000 hours.
- UV lamp hours are monitored and replacement is planned at 13,000 hours.
- The quartz sleeve is cleaned of scale periodically.
- The salt level is kept within the range of 5 to 6 g/L.
- The sleeve seals are checked at every lamp replacement.
// 05 · Information form
Request information on this product
Leave your name and contact details, and your customer representative will get back to you about the models of this product, its fit for your pool and an up-to-date quote.
Subject of the form
Neolysis Spare Parts
- Product
- Neolysis Spare Parts
- Category
- Pool Disinfection Systems
- Number of models
- 9
- Code
- CH-DEZ-0039-01 ... CH-DEZ-0039-09
