Pool Filters

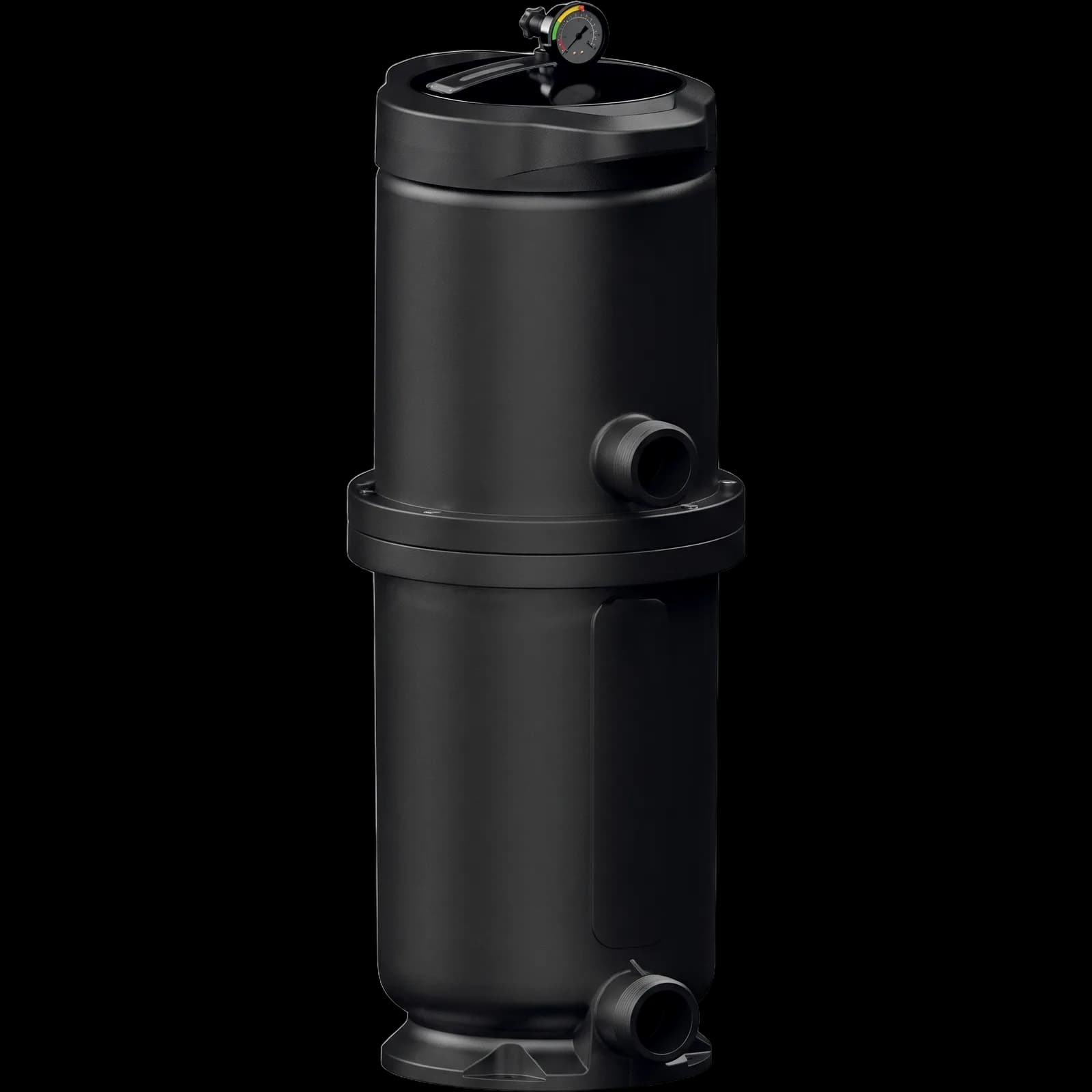

ClariSave, Cartridge Filter.
ClariSave is a cartridge filter that passes pool water through a cartridge element and uses little water for cleaning. Çilek Havuz supplies ClariSave through quotes and as part of its projects. Its four models range from 10.1 to 25.2 m³/h in flow rate, 7.8 to 14 m² in filtration area and 81 to 202 m³ in pool volume. Body diameter is 490 mm, connection Ø50-63 mm and maximum pressure 3.5 bar. Filtration fineness is 20 µm.
CH-KRT-0001-01
- Flow Rate
- 10.1-25.2m³/h
- Filtration Area
- 7.8-14m²
- Connection
- Ø50-63 mm
- List price
- From €546 + VAT
Prices are list prices dated 16.06.2026, excluding VAT.
Suitable pool and installation
Models and price
4 models
List price €546 - €819 excl. VAT
Lowest list price: ClariSave 10
List price, excluding VAT. The final figure depends on quantity and scope and is given in the quotation.
See all models and technical dataCompatibility and connections
- Connection
- Ø50-63 mm
- Filtration fineness
- 20 µm
- Max. pressure
- 3.5 bar
- Cleaning
- Cartridge is washed
// Models
ClariSave Cartridge Filter models, with list prices and technical data.
4 products
ClariSave 10
RecommendedCode CH-KRT-0001-01
- Flow Rate
- 10.1 m³/h
- Filtration Area
- 7.8 m²
- Recommended Pool Volume (8 Hours)
- 81 m³
Price€546 + VAT- Manufacturer Code
- 77113
- Filtration Area
- 7.8 m²
- Filtration velocity
- 1.3 m³/h/m²
- Flow Rate
- 10.1 m³/h
- Recommended Pool Volume (8 Hours)
- 81 m³
- Connection
- Ø 50 - 63 mm
- Max. Operating Pressure
- 3.5 bar
- Filtration Fineness
- 20 µm
- Replacement cartridge code
- 77129
- Body Diameter
- 490 mm
- Height
- 784 mm
- Certification
- EN 16713-1
- Manufacturer warranty
- 5 years
- Weight
- 15.6 kg
ClariSave 15
Code CH-KRT-0001-02
- Flow Rate
- 15.2 m³/h
- Filtration Area
- 10 m²
- Recommended Pool Volume (8 Hours)
- 122 m³
Price€624.75 + VATClariSave 20
Code CH-KRT-0001-03
- Flow Rate
- 20.2 m³/h
- Filtration Area
- 12 m²
- Recommended Pool Volume (8 Hours)
- 162 m³
Price€703.50 + VATClariSave 25
Code CH-KRT-0001-04
- Flow Rate
- 25.2 m³/h
- Filtration Area
- 14 m²
- Recommended Pool Volume (8 Hours)
- 202 m³
Price€819 + VAT
// 01 · Technical table
ClariSave Cartridge Filter technical values
Where a value changes from model to model, every option is listed in that row; the details for each model are in the model list below.
| Specification | Value |
|---|---|
| Manufacturer Code | 77113 / 77114 / 77115 / 77116 |
| Filtration Area | 7.8 m² / 10 m² / 12 m² / 14 m² |
| Filtration velocity | 1.3 m³/h/m² / 1.5 m³/h/m² / 1.7 m³/h/m² / 1.8 m³/h/m² |
| Flow Rate | 10.1 m³/h / 15.2 m³/h / 20.2 m³/h / 25.2 m³/h |
| Recommended Pool Volume (8 Hours) | 81 m³ / 122 m³ / 162 m³ / 202 m³ |
| Connection | Ø 50 - 63 mm |
| Max. Operating Pressure | 3.5 bar |
| Filtration Fineness | 20 µm |
| Replacement cartridge code | 77129 / 77130 / 77131 / 77132 |
| Body Diameter | 490 mm |
| Height | 784 mm / 965 mm |
| Certification | EN 16713-1 |
| Manufacturer warranty | 5 years |
| Weight | 15.6 kg / 16.9 kg / 18.6 kg / 19.3 kg |
// 02 · Use
Users and applications
ClariSave is chosen for filtration lines that need fine filtration and low water use for cleaning. The model is set by the flow rate of the pump: ClariSave 10 delivers 10.1 m³/h and ClariSave 25 delivers 25.2 m³/h. All four models share the same body diameter, with heights in two sizes, 784 and 965 mm.
- Filtration lines requiring a flow rate of 10.1-25.2 m³/h
- Pool volumes of 81-202 m³
- Pools requiring filtration down to 20 µm
- Plant rooms where water use is to be kept low
// 03 · Installation and compatibility
Installation and compatible equipment
ClariSave is installed between the pump discharge line and the return line to the pool. The connection ports suit Ø50-63 mm pipe. No filling is needed, as filtration is carried out by the cartridge in the body. The pressure gauge on the body shows the filter pressure, and the starting value is noted at first start-up.
- The filter is placed on a level, load-bearing floor.
- The pump line is connected to the inlet port and the pool return to the outlet port.
- The lid is closed and the line is checked for leaks.
- The pump is started and the starting pressure on the gauge is noted.
// 04 · Maintenance
Maintenance checkpoints
Maintenance of ClariSave consists of washing the cartridge and replacing it when necessary. If the pressure on the gauge rises noticeably above the starting value, the pump is stopped, the lid is opened, and the cartridge is removed and washed with water. The cartridge is seated back in place and the lid is closed. A worn cartridge is replaced using the cartridge code of the model.
- The gauge pressure is monitored; a rise indicates that cleaning is needed.
- The lid is not opened before the pump is stopped.
- The cartridge is removed, washed and seated back correctly.
- A worn cartridge is replaced using the cartridge code of the model.
